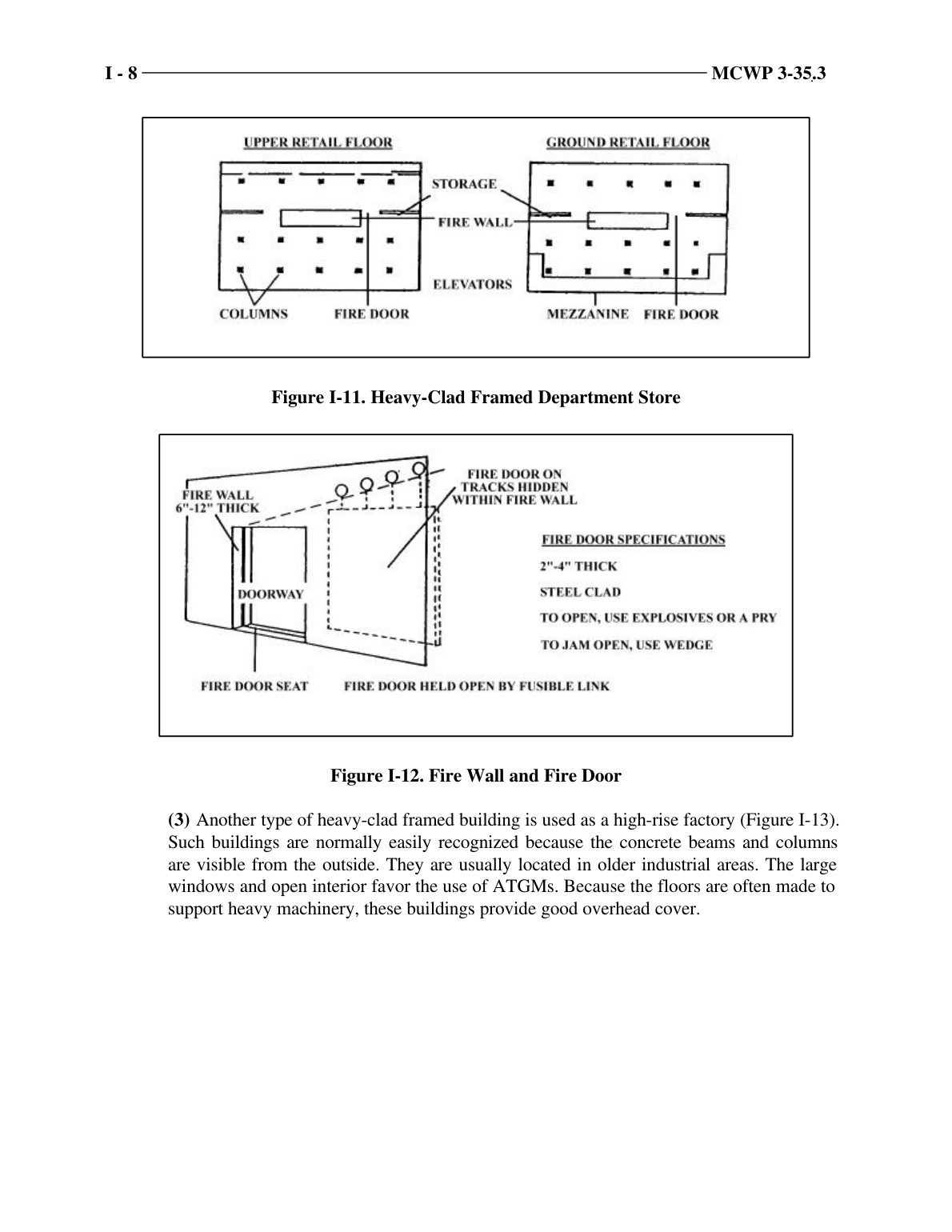

Figure I-11. Heavy-Clad Framed Department Store
Figure I-12. Fire Wall and Fire Door
(3) Another type of heavy-clad framed building is used as a high-rise factory (Figure I-13).
Such buildings are normally easily recognized because the concrete beams and columns
are visible from the outside. They are usually located in older industrial areas. The large
windows and open interior favor the use of ATGMs. Because the floors are often made to
support heavy machinery, these buildings provide good overhead cover.
