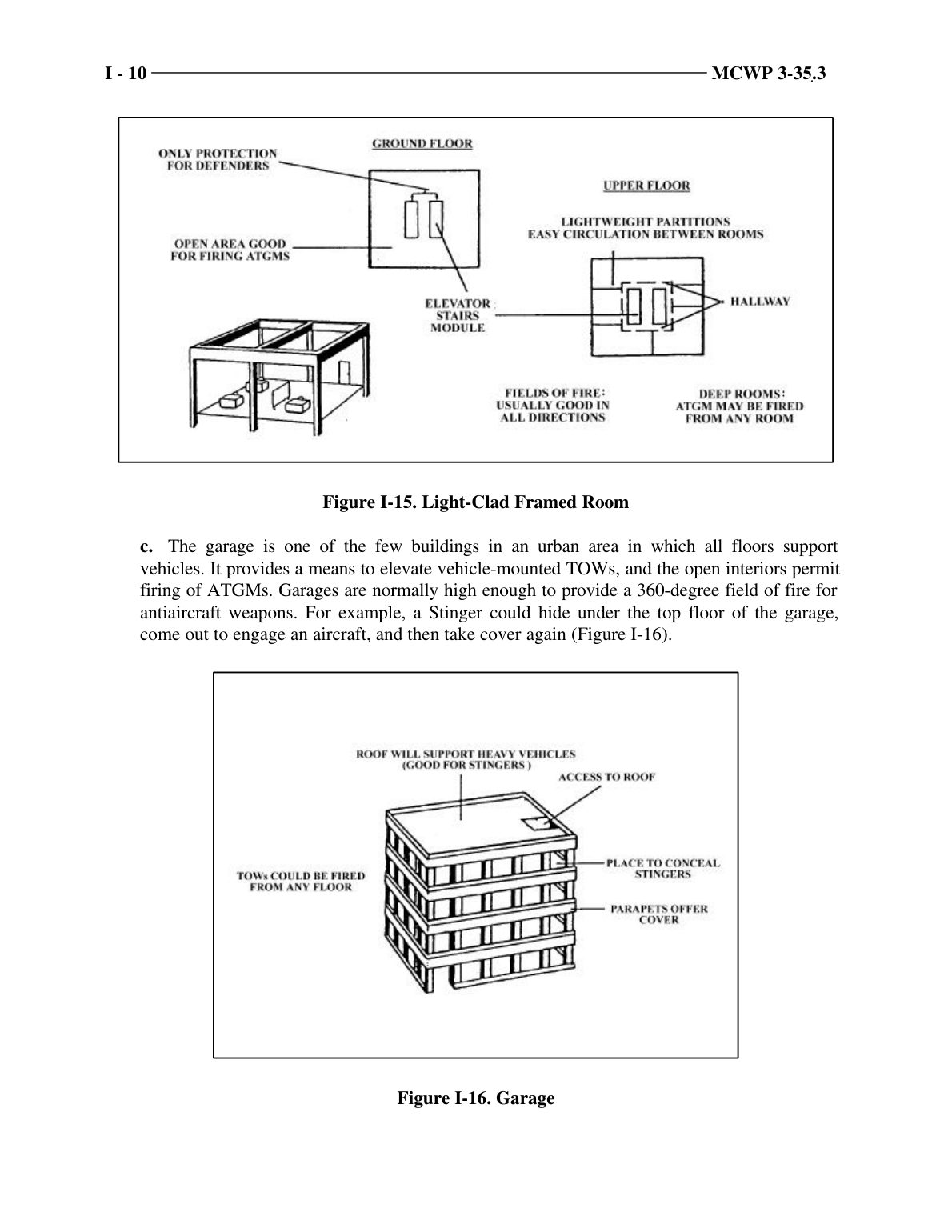

Figure I-15. Light-Clad Framed Room
c.
The garage is one of the few buildings in an urban area in which all floors support
vehicles. It provides a means to elevate vehicle-mounted TOWs, and the open interiors permit
firing of ATGMs. Garages are normally high enough to provide a 360-degree field of fire for
antiaircraft weapons. For example, a Stinger could hide under the top floor of the garage,
come out to engage an aircraft, and then take cover again (Figure I-16).
Figure I-16. Garage
